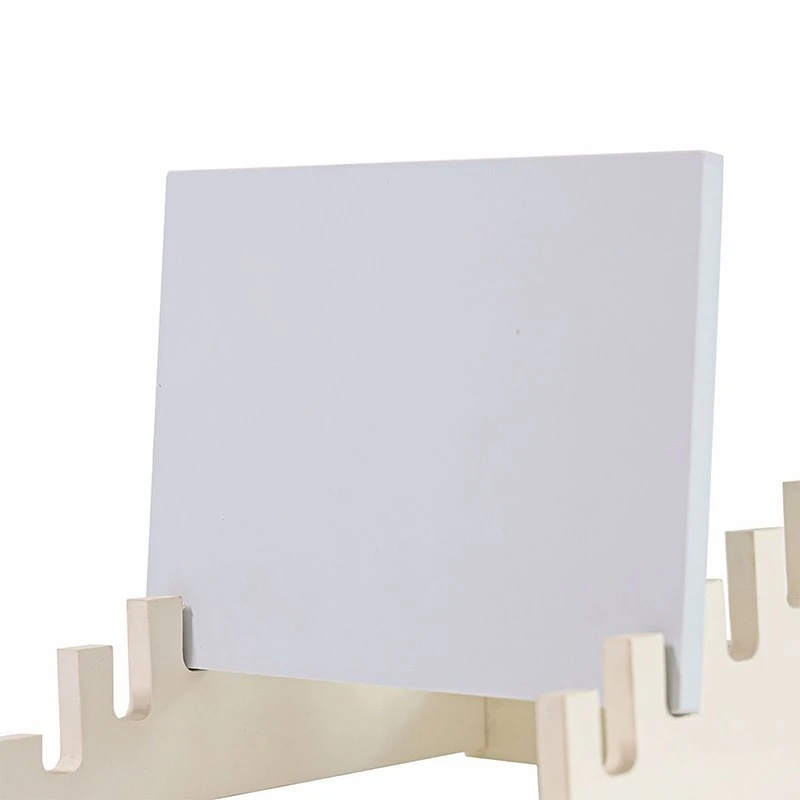

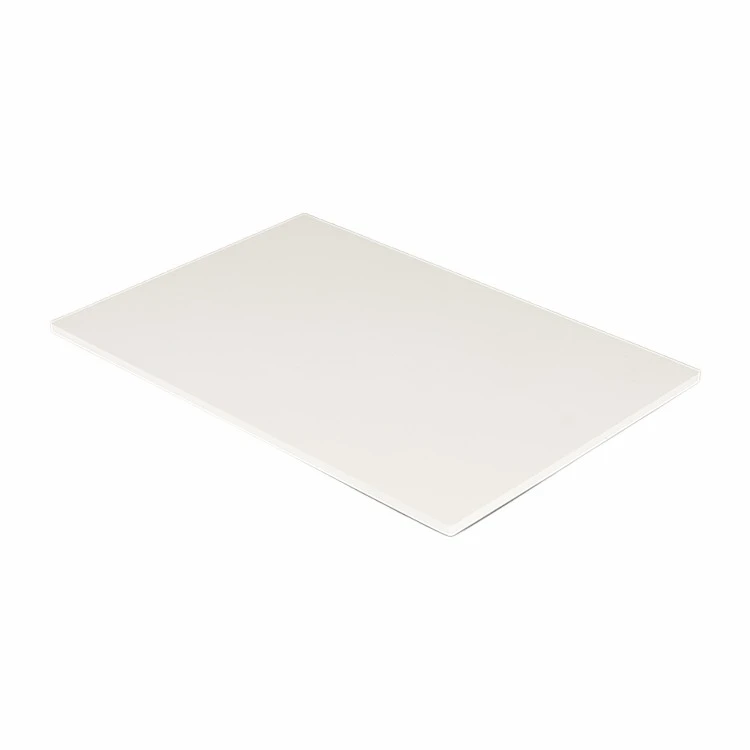

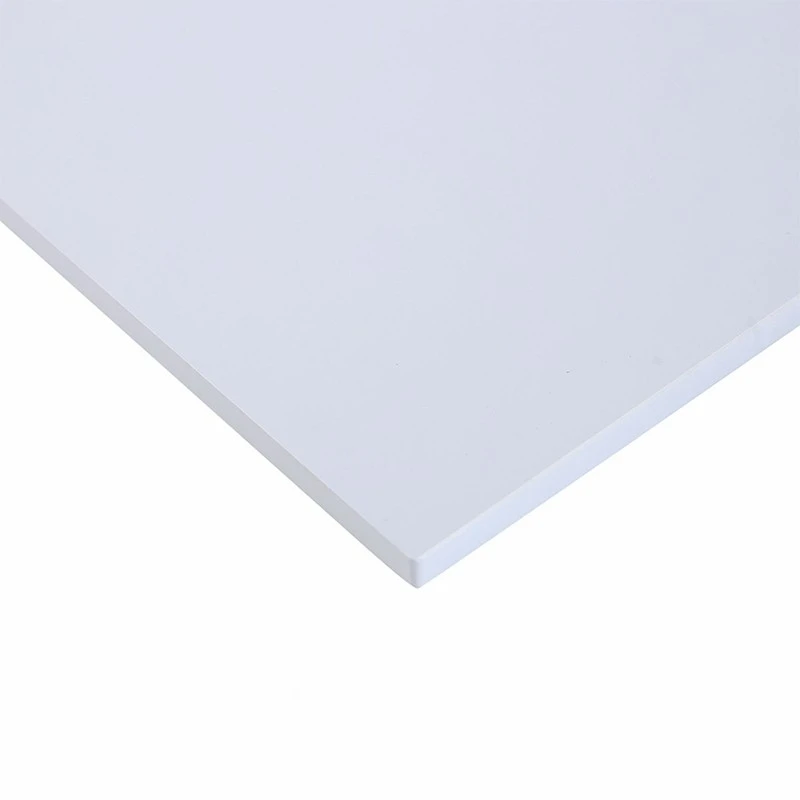

PVC white board is essentially based on a PVC board (belonging to the same category of materials as PVC gray boards). Solid PVC White Sheet is a panel made primarily from polyvinyl chloride (PVC) resin, with additives and stabilizers, through processes including mixing, extrusion. Normally have Super white PVC sheet, PVC cream white sheet and PVC ivory white sheet.
Size:
Thickness range:1mm~60mm
Width:1mm~20mm:1000mm~1500mm
25mm~30mm:1000mm~1300mm
30mm~60mm:1000mm
Length:Any length
Surface:Glossy, matt, embossed(can make the exact patterns according to customers' requirement.)
Color:White, Super white, Cream white, Ivory white.
Technical Data Sheet
|
Items |
Unit |
Typical Value |
|
Density |
g/ cm3 |
1.446 |
|
Mechanical |
||
|
Tensile Strength(Length/Breadth) |
Mpa |
47/50.9 |
|
tensile modulus (Length/Breadth) |
Mpa |
2900/2910 |
|
Notch impact strength (Length/Breadth) |
kJ/m2 |
5.7/5.0 |
|
Shore Hardness |
D/15：78 |
|
|
Thermal |
|
|
|
Vicat Softening Temperature |
°C |
78.2 |
|
Heat Shrinkage (Length/Breadth) |
% |
0.8/-2.7 |
|
Chemical |
||
|
35%±1% (v/v) HCI 5h 60°C |
g/ cm3 |
+0.55 |
|
30%±1% (v/v) H2SO4 5h 60°C |
g/ cm3 |
+0.5 |
|
40%±1% (v/v) HNO3 5h 60°C |
g/ cm3 |
-0.8 |
|
40%±1% (v/v) NaOH 5h 60°C |
g/ cm3 |
+0.05 |
|
Electrical |
|
|
|
Volume Resistivity |
2.68E+13Ω·m |
Characteristics
Excellent chemical and corrosion resistance;
Excellent impact strength;
Easily to fabricate, weld or machine;
High rigidity and superior strength;
Reliable electrical insulation;
Good features for printing;
Low flammability,
Self-extinguishing
Lightweight and Easy to Install
Applications
PVC White Sheet is widely used in industries such as chemical engineering, petroleum, electroplating, water purification equipment, environmental protection equipment, mining, pharmaceuticals, electronics, communications, decoration, Liquid crystal semiconductor cleaning equipment; water treatment equipment; PCB and semiconductor equipment.
Service
1.Our company offers cutting processing services, which can tailor the dimensions and perform simple processing according to customer requirements.
2.Baoding Lida Plastic Industry Co., Ltd. is committed to providing our customers with not only quality products,and offers a range of value-added services, including technical support and timely response to customers' daily needs.
